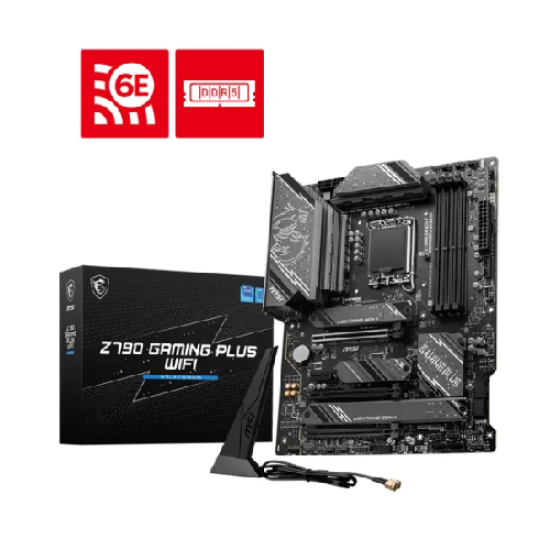

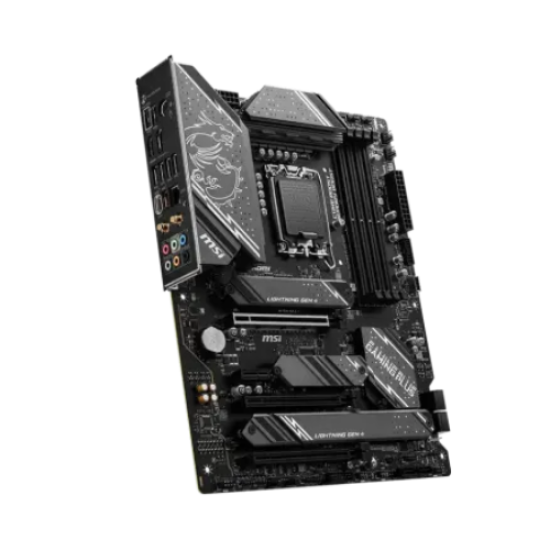

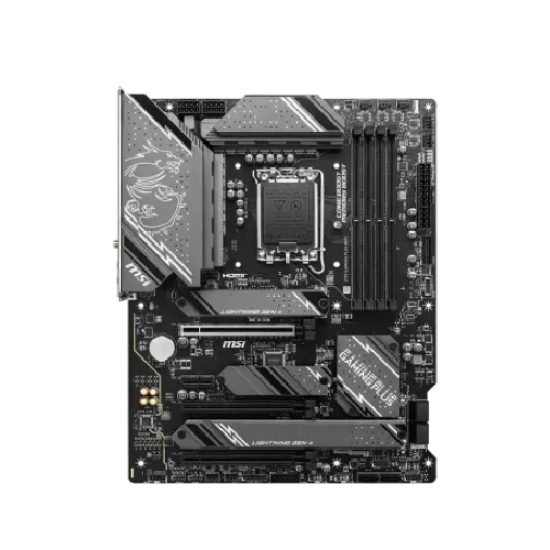

MSI Z790 GAMING PLUS WIFI DDR5 Intel®Z790 Chipset 14th/ 13th/ 12th Gen LGA 1700 ATX Motherboard

Stock: In Stock
Brand: MSI
Model: Z790 GAMING PLUS WIFI

Based on 2 reviews. - Write a review

31,600৳

Ex Tax: 31,600৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
- Supported RAM: 4x DDR5, 7200+MHz (OC), Max 192GB
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 2.5G LAN with Wi-Fi 6E Solution

View more details

Basic Information
Supported CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL Z790
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Type	DDR5
Expansion Slots
PCI	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Socket	4x M.2 slots
Memory Specifications
Slots	4 x DIMM
Supported Memory	Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Graphics
Graphics	1x HDMI Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*

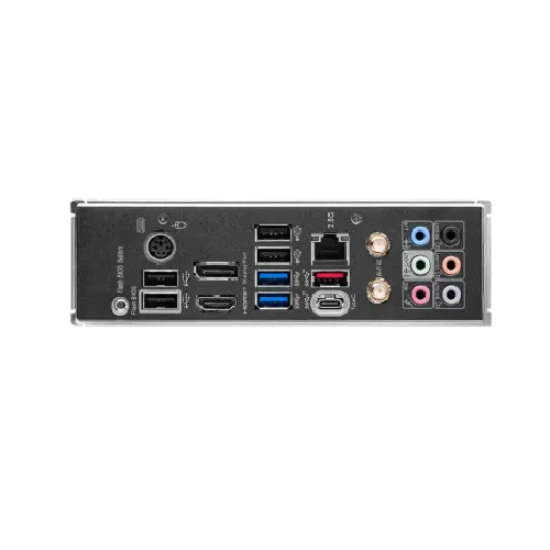

Connector & Ports
HDMI	1x HDMI 2.1
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Display Port (s)	1x DisplayPort 1.4
USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 1x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Intel 2.5Gbps LAN
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others Information
Special Features	LED FEATURE: 4x EZ Debug LED
Warranty Information
Warranty	3 years

MSI Z790 GAMING PLUS WIFI DDR5 Intel®Z790 Chipset 14th/ 13th/ 12th Gen LGA 1700 ATX Motherboard

The MSI Z790 GAMING PLUS WIFI DDR5 motherboard is engineered for gamers, creators, and power users seeking top-tier performance on Intel’s latest desktop platforms. Designed with the versatile LGA 1700 socket, it supports Intel 14th, 13th, and 12th Gen Core processors, along with Pentium Gold and Celeron CPUs, ensuring excellent upgrade flexibility. Built on the advanced Intel Z790 chipset, this ATX motherboard delivers a robust foundation with enhanced connectivity, fast storage support, and superior stability for high-performance computing. Equipped with four DDR5 DIMM slots, the motherboard supports memory speeds up to 7200+ MHz (OC), providing exceptional bandwidth for gaming, multitasking, and content creation. The board includes four M.2 slots, three supporting PCIe 4.0 x4 and one supporting PCIe 4.0 x4/SATA, allowing users to configure multiple high-speed NVMe SSDs. Additionally, six SATA 6Gb/s ports ensure compatibility with traditional storage devices. RAID support for both SATA and NVMe storage enhances data performance and protection. For expansion, the MSI Z790 GAMING PLUS WIFI offers three PCIe x16 slots, including one PCIe 5.0 slot for next-generation GPUs. Connectivity is robust with USB 3.2 Gen2x2 Type-C, multiple USB 3.2 Gen1 ports, and USB 2.0 for legacy devices. Networking is powered by Intel 2.5Gb LAN and Intel Wi-Fi 6E, delivering fast, reliable wired and wireless performance. Bluetooth 5.3 further expands wireless device support. The motherboard also includes Realtek ALC897 7.1-channel audio, offering immersive sound for gaming or media. MSI’s signature features such as EZ Debug LEDs, multiple RGB headers, and advanced cooling support ensure convenient troubleshooting, aesthetic customization, and optimal thermal performance. With a 3-year warranty, this motherboard is a powerful, future-ready platform for high-end PC builds.

Features of MSI Z790 GAMING PLUS WIFI DDR5 Intel®Z790 Chipset 14th/ 13th/ 12th Gen LGA 1700 ATX Motherboard

Advanced CPU Support: Compatible with Intel 14th, 13th, and 12th Gen Core processors, delivering excellent performance and future-ready processing power.
High-Speed Memory Performance: Supports DDR5 memory up to 7200+ MHz (OC), ensuring faster data throughput and improved multitasking for demanding applications.
Next-Gen Expansion Slot: Features a PCIe 5.0 x16 slot for high-performance graphics cards, providing maximum bandwidth for gaming and creative workloads.
Multiple M.2 Storage Options: Equipped with four M.2 slots supporting PCIe 4.0 and SATA, allowing ultra-fast NVMe SSD setups for quicker boot times and enhanced storage flexibility.
Advanced Connectivity: Includes USB 3.2 Gen2x2 Type-C, multiple USB 3.2 Gen1/Gen2 ports, and USB 2.0 options for seamless connectivity with modern peripherals.
High-Speed Networking: Comes with Intel 2.5Gbps LAN for stable and fast wired networking, perfect for gaming, streaming, and large data transfers.
Latest Wireless Technology: Built-in Intel Wi-Fi 6E with Bluetooth 5.3 ensures faster wireless speeds, low latency, and improved device compatibility.
Premium Audio Quality: Realtek ALC897 7.1-channel HD audio provides crisp and immersive sound for gaming, entertainment, and content creation.
Enhanced Cooling Support: Offers multiple fan headers including CPU, pump, and system fan connectors, ensuring optimal cooling for high-performance builds.
Troubleshooting Made Easy: Features EZ Debug LED indicators for quick and simple problem diagnosis during system setup or upgrades.
RGB Customization: Includes RGB and Addressable RGB headers, enabling personalized lighting effects to match your system’s aesthetics.
Reliable Power Delivery: Dual CPU power connectors and robust VRM design ensure stable power output for high-performance processors.
