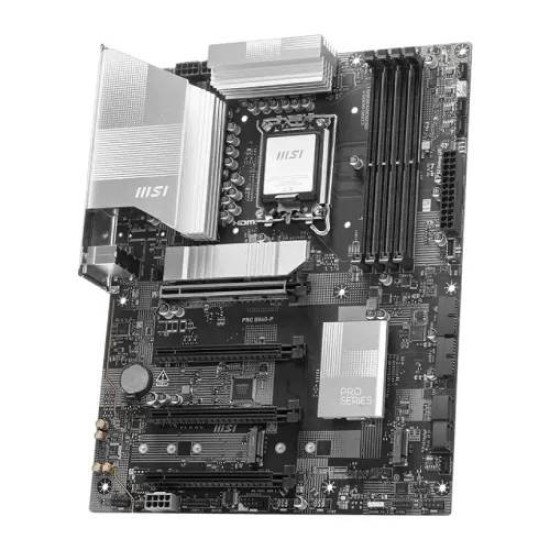

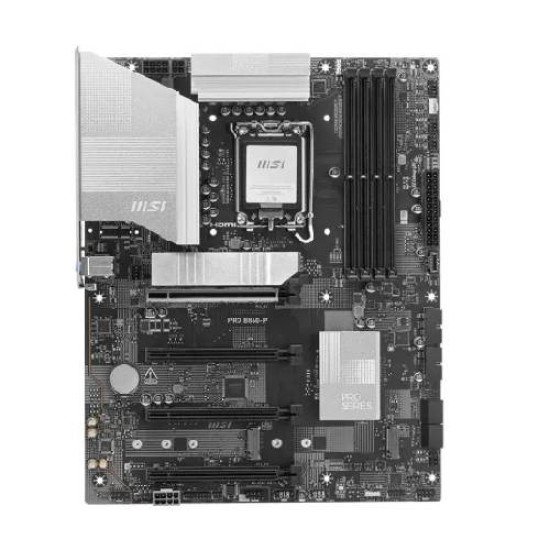

MSI PRO B860-P LGA 1851 ATX Motherboard

Stock: In Stock
Brand: MSI
Model: PRO B860-P

Based on 0 reviews. - Write a review

27,000৳

Ex Tax: 27,000৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
- Supported RAM: 4x DDR5, Max 256GB 8800- 6400 (OC) MT/s
- Graphics Output: 1x HDMI, 1x DisplayPort, 1x Type-C DisplayPort
- Features: 3x M.2, Realtek 8126 5Gbps LAN

View more details

General
Type	DDR5
Basic Information
Supported CPU	Supports Intel Core Ultra Processors (Series 2)
Chipset	INTEL B860
Form Factor	ATX (243.84mmx304.8mm)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x1 (From Chipset)
M.2 Socket	3x M.2
Memory Specifications
Slots	4
Supported Memory	4x DDR5 UDIMM, Memory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s
Graphics
Graphics	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
Motherboard
Supported Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G
Connector & Ports
HDMI	1x HDMI 2.1
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Display Port (s)	1x DisplayPort 1x Type-C DisplayPort Thunderbolt 4 port, supporting DisplayPort 1.4 over USB Type-C, with a maximum resolution of 4K 120Hz / 8K 60Hz*

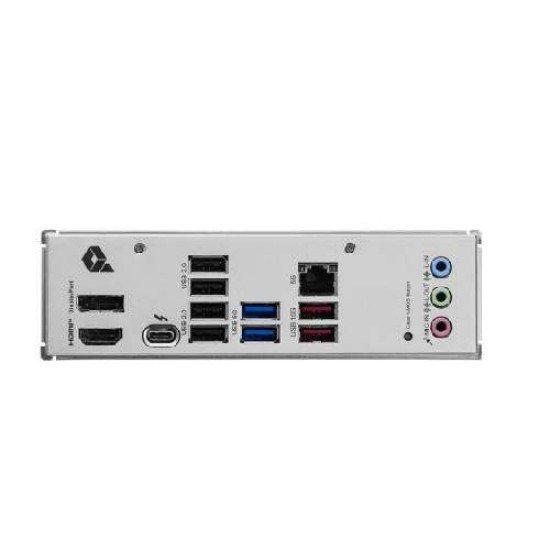

USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front)
LAN Port (s)	Realtek 8126 5Gbps LAN
Audio	1x Front Audio (JAUD)
Internal I/O Ports	x Thunderbolt5 card connector(JTBT5, support RTD3) 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Warranty Information
Warranty	3 Year warranty

MSI PRO B860-P LGA 1851 ATX Motherboard

The MSI PRO B860-P LGA 1851 ATX Motherboard is engineered to deliver exceptional stability, performance, and expandability for next-generation PC builds powered by Intel’s latest processors. Designed for professionals, creators, and power users, this motherboard supports Intel Core Ultra Series 2 processors, ensuring future-ready computing capabilities and enhanced efficiency for demanding workloads. Built on the Intel B860 chipset, the PRO B860-P offers a balanced blend of features, including robust connectivity options, high-speed storage interfaces, and advanced audio solutions. Its ATX form factor provides ample space for components and superior airflow, making it an ideal foundation for productivity-focused desktops or performance-driven workstations. With four DDR5 DIMM slots, the motherboard supports up to 256GB of ultra-fast memory, reaching speeds as high as 8800+ MT/s under optimal configurations. This ensures seamless multitasking, faster load times, and superior system responsiveness. For graphics and expansion, the MSI PRO B860-P offers four PCIe x16 slots, including a PCIe 5.0 primary slot straight from the CPU, enabling compatibility with the latest GPUs and expansion cards. Storage capabilities are equally impressive, featuring three M.2 slots, including one PCIe 5.0 x4 slot for lightning-fast NVMe SSDs, along with four SATA 6Gb/s ports. RAID support for both SATA and NVMe ensures data flexibility and improved performance. Connectivity includes Thunderbolt 4 Type-C display output, HDMI 2.1, and DisplayPort 1.4, supporting up to 8K resolution. USB options include multiple high-speed 10Gbps and 5Gbps ports for modern peripherals. The integrated Realtek 8126 5Gbps LAN ensures fast, reliable networking for professional applications. Packed with customizable RGB headers, advanced cooling connectors, and a durable build, the MSI PRO B860-P is a dependable and versatile choice for building a powerful, future-ready PC.

features of MSI PRO B860-P LGA 1851 ATX Motherboard

Supports Intel Core Ultra Processors (Series 2) on LGA 1851 socket.
Intel B860 chipset with ATX form factor for high compatibility and expandability.
Memory: 4x DDR5 slots, up to 256GB, speeds up to 8800+ MT/s (OC).
Storage: 3x M.2 slots (PCIe 5.0/4.0) + 4x SATA 6G ports; RAID 0/1/5/10 support.
Expansion Slots: 4x PCIe slots for GPUs and other add-ons; PCIe 5.0 ready.
Graphics Output: HDMI 2.1, DisplayPort 1.4, Thunderbolt 4 Type-C (4K@120Hz / 8K@60Hz).
USB Ports: Front & rear USB 2.0, USB 5Gbps, USB 10Gbps, and USB Type-C.
Networking: Realtek 8126 5Gbps LAN for ultra-fast connectivity.
Audio: Realtek ALC897 codec, 7.1-channel high-definition sound.
Internal Features: Fan headers, RGB/ARGB support, TPM 2.0 for security.
Warranty: 3-year manufacturing warranty for peace of mind.
