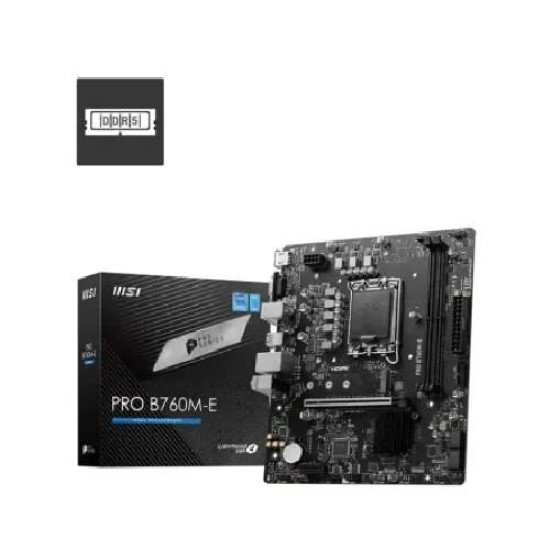

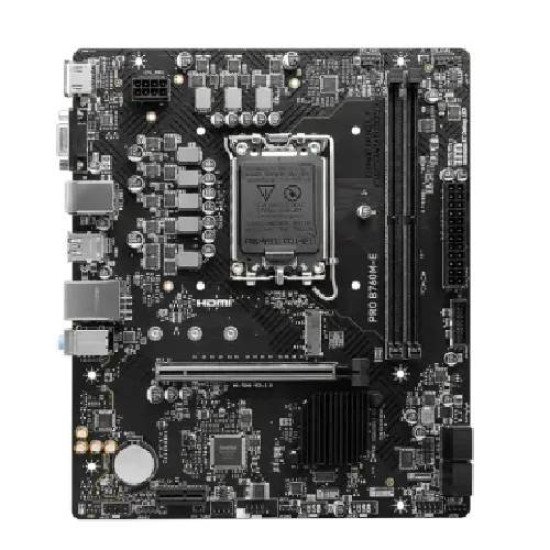

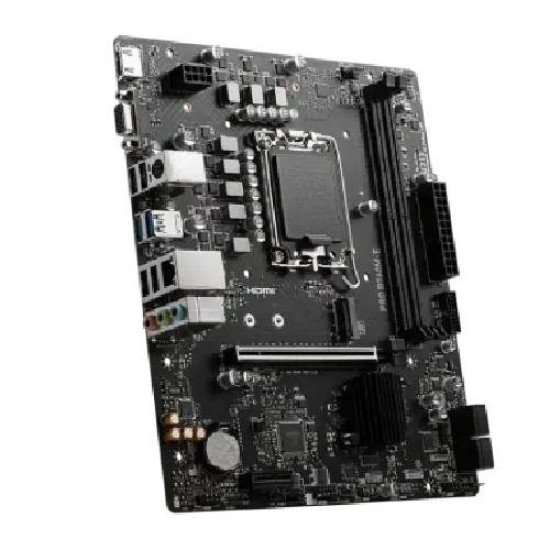

MSI PRO B760M-E DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard
The MSI PRO B760M-E DDR5 motherboard is designed to deliver reliable performance and modern features for users building a compact yet powerful PC. Engineered with the Intel® B760 chipset, it supports 14th, 13th, and 12th Generation Intel® Core™, Pentium Gold, and Celeron processors, providing flexible upgrade options and strong computing capability. Its mATX form factor makes it ideal for smaller builds without sacrificing essential connectivity or expandability. This motherboard is equipped with DDR5 memory support, allowing speeds up to 6400+ MHz (OC) for enhanced responsiveness, smoother multitasking, and greater overall system efficiency. With two DIMM slots and a maximum capacity of 96GB, it caters to a wide range of workloads—from everyday tasks to more demanding creative or gaming applications. For graphics and expansion, the board includes a PCIe 4.0 x16 slot, offering ample bandwidth for modern GPUs, along with a PCIe 3.0 x1 slot for additional cards. Storage options are versatile, featuring a PCIe 4.0/SATA M.2 slot supporting multiple drive sizes, plus four SATA 6Gb/s ports, suitable for both SSDs and HDDs. RAID support (0/1/5/10) adds extra flexibility for data organization and protection. Connectivity includes USB 3.2 Gen1 and USB 2.0 ports, ensuring compatibility with a variety of devices. Display options are covered with HDMI 1.4 (up to 4K@30Hz) and VGA outputs. The integrated Realtek Gigabit LAN provides stable, fast networking for work or gaming. Additional features such as 7.1-channel HD audio, RGB LED connector, TPM 2.0 header, system fan headers, and well-laid-out internal connectors make this a dependable, feature-rich foundation for any modern PC build.
Features of MSI PRO B760M-E DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard
- CPU Support: Compatible with 14th, 13th, and 12th Gen Intel® Core™, Pentium Gold, and Celeron processors on the LGA1700 socket, ensuring strong performance and wide upgrade flexibility.
- Chipset: Equipped with the Intel® B760 chipset, providing enhanced stability, efficient data handling, and support for modern PC features.
- Memory Support: Supports DDR5 memory with speeds up to 6400+ MHz (OC), offering faster data transfer, smoother multitasking, and improved system responsiveness. Comes with 2 DIMM slots, supporting up to 96GB.
- Expansion Slots: Features 1x PCIe 4.0 x16 slot for high-performance graphics cards and 1x PCIe 3.0 x1 slot for additional expansion cards.
- Storage Options: Includes 1x M.2 slot supporting PCIe 4.0 x4 and SATA modes for fast NVMe SSDs, along with 4x SATA 6Gb/s ports for additional storage devices. RAID 0/1/5/10 supported.
- Graphics Output: Offers 1x HDMI 1.4 port with 4K@30Hz support and 1x VGA port, ensuring compatibility with modern and legacy displays.
- Audio System: Built with Realtek ALC897 7.1-channel High Definition Audio for clear and immersive sound quality.
- Networking: Comes with Realtek RTL8111H Gigabit LAN for stable and high-speed internet connectivity.
- USB Connectivity: Provides multiple USB options, including USB 3.2 Gen1 and USB 2.0 ports on both front and rear, ensuring easy connection to peripherals.
- Form Factor: Designed in a compact mATX form factor (200mm x 236.16mm), ideal for small to mid-size PC builds without compromising performance.
- Additional Features: Includes RGB LED connector, TPM 2.0 header, system fan headers, chassis intrusion connector, and multiple internal I/O ports for flexible system customization.
