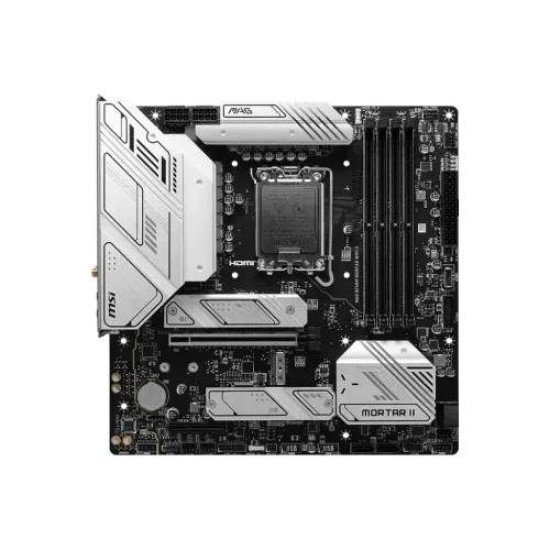

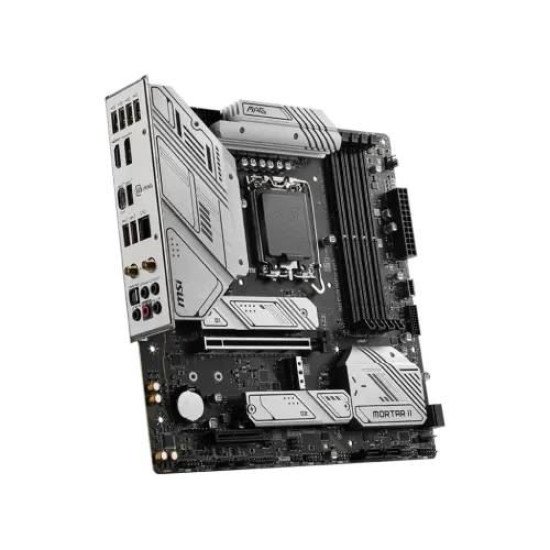

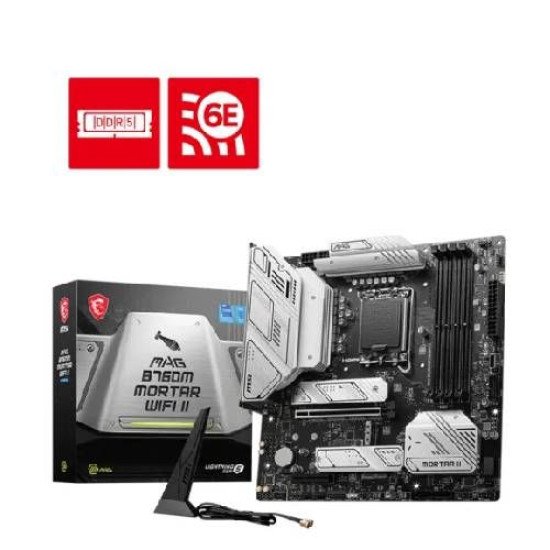

MSI MAG B760M MORTAR WIFI II DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

Stock: In Stock
Brand: MSI
Model: MAG B760M MORTAR WIFI II

Based on 1 reviews. - Write a review

26,000৳

Ex Tax: 26,000৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
- Supported RAM: 4x DDR5, 7800+MHz (OC), Max 192GB
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: Realtek 2.5Gbps LAN, Wi-Fi 6E

View more details

Basic Information
Supported CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Type	DDR5
Expansion Slots
PCI	1x PCI-E x16 slot Supports x16/x4 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
M.2 Socket	3x M.2 slots
Memory Specifications
Slots	4 x DIMM
Supported Memory	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Maximum Memory	192GB
Graphics
Graphics	Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz* Support DP 1.4, maximum resolution of 8K 60Hz*
Connector & Ports
HDMI	1x HDMI 2.1
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Display Port (s)	1x DisplayPort 1.4

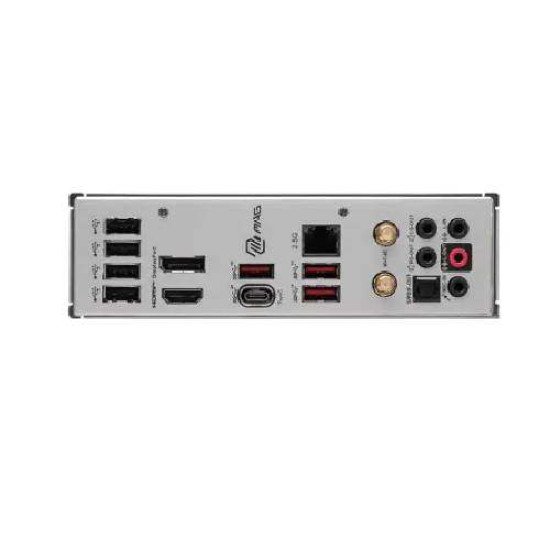

USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek 2.5Gbps LAN
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others Information
Special Features	LED FEATURE: 4x EZ Debug LED
Warranty Information
Warranty	3 years

MSI MAG B760M MORTAR WIFI II DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

The MSI MAG B760M MORTAR WIFI II DDR5 is a robust and feature-rich micro-ATX motherboard designed to deliver high performance and seamless connectivity for gamers, content creators, and PC enthusiasts. Built on the Intel B760 chipset, it supports Intel 14th, 13th, and 12th Gen Core processors, as well as Intel Pentium Gold and Celeron processors with the LGA 1700 socket, providing maximum compatibility and performance potential. This motherboard supports DDR5 memory, with four DIMM slots capable of reaching up to 7800+ MHz (OC), and a maximum memory capacity of 192GB. With dual-channel architecture and Intel Extreme Memory Profile support, it ensures ultra-fast and stable memory performance, allowing for smooth multitasking and gaming experiences. The MAG B760M MORTAR WIFI II also features comprehensive graphics support, including HDMI 2.1 with HDR for 4K 60Hz output and DisplayPort 1.4 for up to 8K 60Hz, catering to high-resolution monitors and advanced visual setups. Its expansion capabilities include one PCIe 5.0 x16 slot and two additional PCIe slots, along with three M.2 slots and four SATA 6G ports, giving users flexibility for storage configurations including RAID 0, 1, 5, and 10. Connectivity is seamless with Intel Wi-Fi 6E, Bluetooth 5.3, and a 2.5Gbps LAN port, while multiple USB ports—including USB 3.2 Gen2x2 Type-C—support high-speed data transfers. Internal RGB connectors and EZ Debug LEDs provide customization and easy system troubleshooting. With premium audio through Realtek ALC897 codec, robust power design, and a compact mATX form factor, the MSI MAG B760M MORTAR WIFI II is an ideal foundation for a powerful and reliable PC build, backed by a 3-year manufacturer warranty for peace of mind.

Features of MSI MAG B760M MORTAR WIFI II DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen mATX Motherboard

CPU Support: Compatible with Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors, delivering powerful performance and stable processing for demanding tasks.
Memory Support: Supports DDR5 memory up to 7800+ MHz (OC) with a maximum capacity of 192GB, enabling high-speed multitasking and optimized system performance.
Graphics Support: Features HDMI 2.1 (4K 60Hz) and DisplayPort 1.4 (8K 60Hz) outputs, allowing high-resolution gaming and immersive visual experiences.
Expansion Slots: Equipped with 1x PCIe 5.0 x16 slot and 2x PCIe slots, providing flexibility for graphics cards and other expansion devices.
Storage Options: Includes 3x M.2 slots and 4x SATA 6G ports, supporting RAID 0, 1, 5, and 10 configurations for enhanced storage speed and redundancy.
Networking: Intel Wi-Fi 6E and Bluetooth 5.3 provide ultra-fast wireless connectivity, complemented by a 2.5Gbps LAN port for stable wired connections.
Audio: Realtek ALC897 7.1-channel high-definition audio ensures crystal-clear sound for gaming, streaming, and multimedia.
RGB & LED Support: Offers 2x Addressable V2 RGB and 1x RGB header, along with EZ Debug LEDs for easy system customization and troubleshooting.
Form Factor: Compact mATX design (243.84mm x 243.84mm) fits efficiently in mid-sized PC cases while maintaining robust features.
Warranty: Backed by a 3-year manufacturer warranty for reliability and peace of mind.
