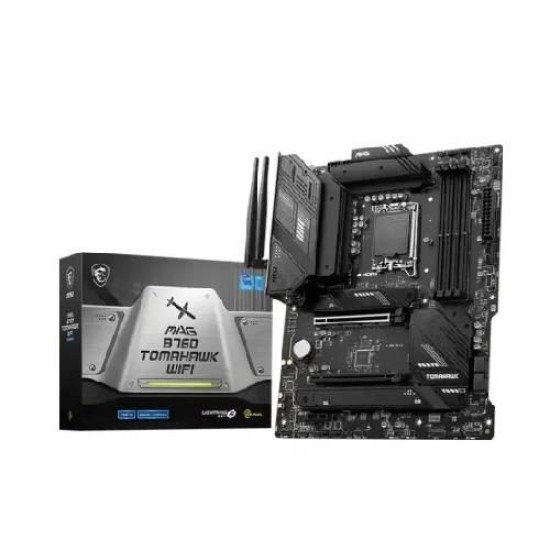

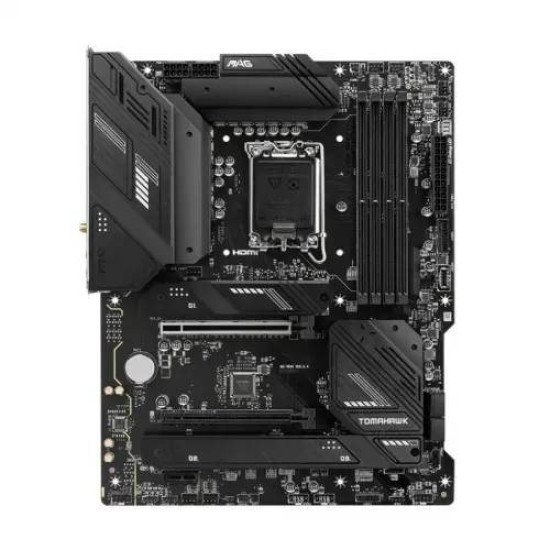

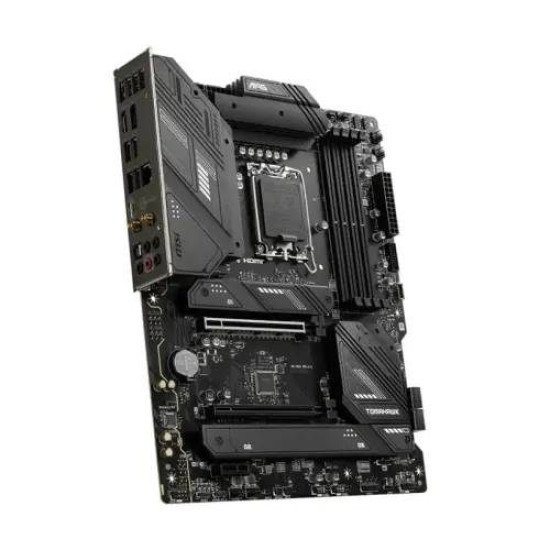

MSI MAG B760 TOMAHAWK WIFI DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen ATX Motherboard

Stock: In Stock
Brand: MSI
Model: MAG B760 TOMAHAWK WIFI

Based on 1 reviews. - Write a review

27,200৳

Ex Tax: 27,200৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
- Supported RAM: 4x DDR5, Max 128GB 7000+(OC)
- Graphics Output: 1x HDMI, 1x DisplayPort
- Features: 3x M.2 slot, Intel Wi-Fi 6E, Bluetooth 5.3

View more details

Basic Information
Supported CPU	Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA1700
Chipset	INTEL B760
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
Type	DDR5
Expansion Slots
PCI	2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x4 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset)
Memory Specifications
Slots	4
Supported Memory	Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile
Graphics
Graphics	1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz
Connector & Ports
HDMI	1x HDMI
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Display Port (s)	1x DisplayPort

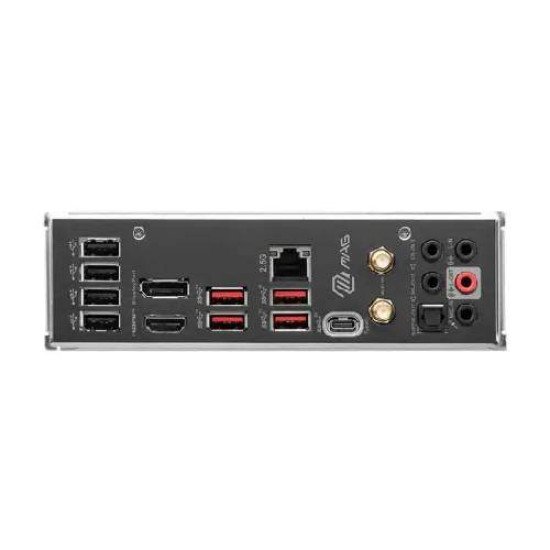

USB (s)	4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek 2.5Gbps LAN
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Supported Storage	3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devicesC M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G port
Audio	HD Audio Connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others Information
Special Features	4x EZ Debug LED
Warranty Information
Warranty	3 years

MSI MAG B760 TOMAHAWK WIFI DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen ATX Motherboard

The MSI MAG B760 TOMAHAWK WIFI DDR5 Motherboard is engineered for gamers, content creators, and PC enthusiasts who demand performance, reliability, and next-generation connectivity. Built on the Intel® B760 chipset, this ATX motherboard supports 14th, 13th, and 12th Gen Intel® Core processors, Pentium Gold, and Celeron CPUs via the LGA1700 socket, delivering exceptional versatility for high-performance computing. Designed for gamers and professionals alike, the MAG B760 TOMAHAWK WIFI features robust memory support with four DDR5 slots, accommodating up to 128GB of RAM. With overclocking capabilities reaching up to 7000+ MHz, it ensures seamless multitasking and ultra-fast performance for demanding applications and modern AAA games. Dual-channel memory support and Intel® Extreme Memory Profile (XMP) further optimize speed and efficiency. The motherboard provides extensive expansion options, including three PCIe slots (PCIe 5.0 x16, PCIe 3.0 x4, PCIe 4.0 x1), and multiple storage interfaces, with three M.2 slots and four SATA 6Gb/s ports supporting RAID 0, 1, 5, and 10. For graphics output, it includes HDMI 2.1 and DisplayPort 1.4, supporting up to 8K resolution, ideal for high-definition displays and immersive gaming experiences. Connectivity is top-tier, featuring Realtek 2.5Gbps LAN, Intel Wi-Fi 6E with MU-MIMO support, and Bluetooth 5.3 for fast, reliable wireless communication. The board also includes a rich array of USB ports, from USB 2.0 to USB 3.2 Gen2x2 Type-C, ensuring compatibility with all peripherals. Additional features like EZ Debug LEDs, multiple RGB headers, high-quality audio via Realtek ALC897, and a 3-year manufacturing warranty make the MSI MAG B760 TOMAHAWK WIFI DDR5 a comprehensive solution for building a high-performance, future-ready PC.

features of MSI MAG B760 TOMAHAWK WIFI DDR5 Intel® B760 Chipset 14th/ 13th/ 12th Gen ATX Motherboard

CPU Support: Compatible with Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors, delivering powerful performance and stable processing for demanding tasks.
Chipset: Intel B760 chipset ensures reliable connectivity, enhanced system performance, and optimized power delivery.
Memory Support: Supports up to 128GB DDR5 RAM across 4 slots, with overclocking speeds up to 7000+ MHz for high-speed multitasking and gaming performance.
Expansion Slots: Includes PCIe 5.0 x16, PCIe 3.0 x4, and PCIe 4.0 x1 slots, supporting next-gen graphics cards and expansion cards for ultimate system customization.
Storage Options: Equipped with 3 M.2 slots and 4 SATA 6Gb/s ports, supporting RAID 0, 1, 5, and 10 configurations for fast and reliable storage solutions.
Graphics Support: HDMI 2.1 (4K 60Hz) and DisplayPort 1.4 (8K 60Hz) outputs provide ultra-high-resolution display options for gaming and professional use.
Networking: Realtek 2.5Gbps LAN, Intel Wi-Fi 6E, and Bluetooth 5.3 deliver fast, stable wired and wireless connectivity.
Audio: 7.1-channel high-definition audio with Realtek ALC897 codec and S/PDIF support ensures immersive sound quality.
USB Ports: Comprehensive USB connectivity, including USB 3.2 Gen2x2 Type-C, USB 3.2 Gen2, USB 3.2 Gen1, and USB 2.0 ports for all peripheral needs.
Special Features: EZ Debug LEDs for easy troubleshooting, multiple RGB headers for customizable lighting, and support for Intel Extreme Memory Profile (XMP).
