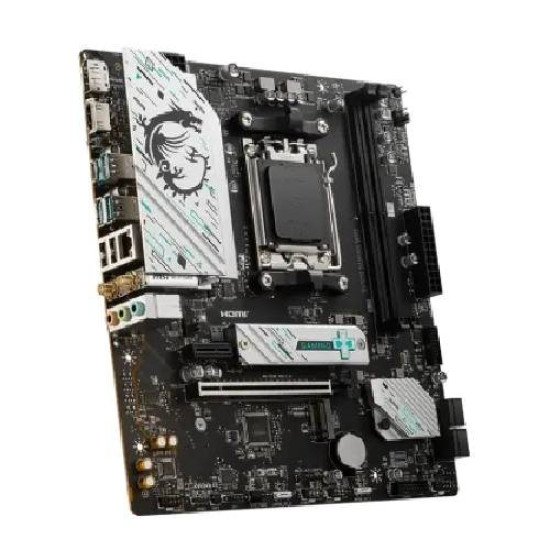

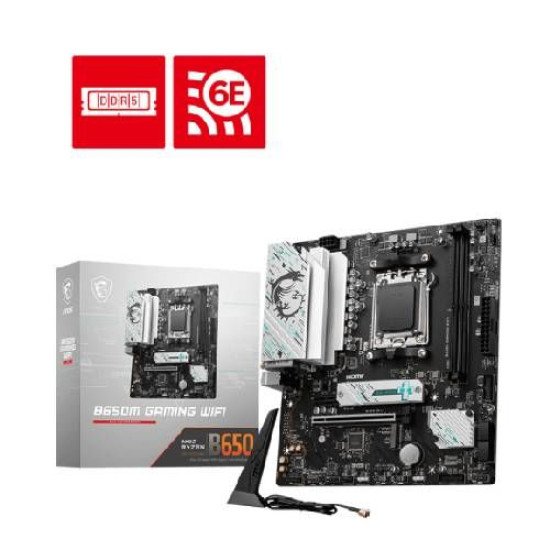

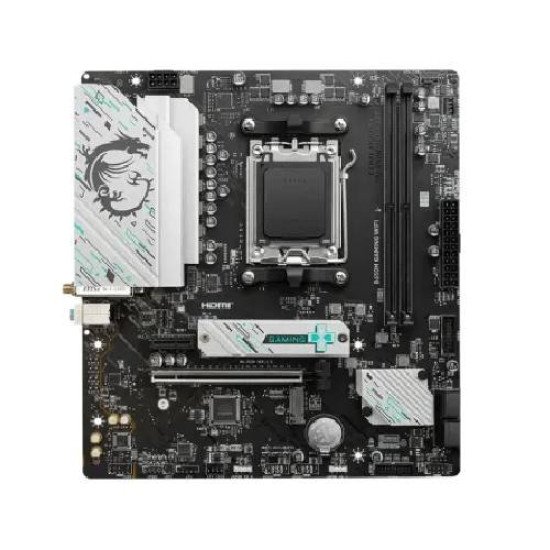

MSI B650M GAMING WIFI AMD B650 Chipset AM5 mATX Motherboard

Stock: In Stock
Brand: MSI
Model: B650M GAMING WIFI

Based on 0 reviews. - Write a review

18,500৳

Ex Tax: 18,500৳

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
- Supported RAM: 2x DDR5, up to 7800+(OC) MHz
- Graphics Output: 1x HDMI, 1x Display Port
- Features: Supports Bluetooth 5.3, AMD Wi-Fi 6E

View more details

Basic Information
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Chipset	AMD B650
BIOS
Form Factor	mATX 226mmx243.84mm
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Type	DDR5
Expansion Slots
PCI	1x PCI-E x16 slot Supports x16/x1 • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (F rom Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
M.2 Socket	2x M.2
Memory Specifications
Slots	2
Supported Memory	7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Maximum Memory	128GB
Graphics
Graphics	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz*
Motherboard
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed
Connector & Ports
HDMI	1x HDMI
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Display Port (s)	1x DisplayPort
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front)
LAN Port (s)	Realtek RTL8125BG 2.5Gbps LAN
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3
Audio

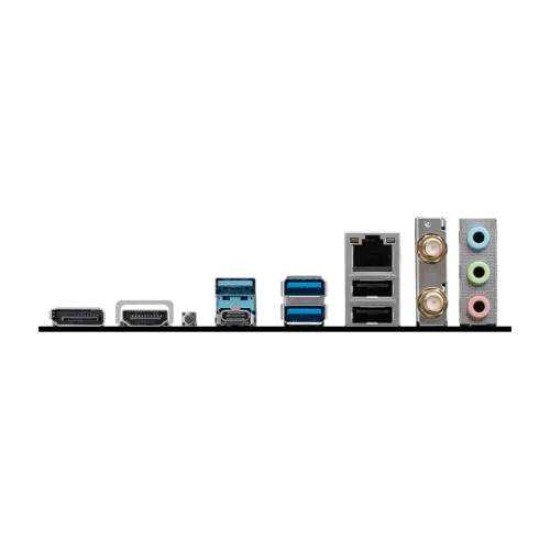

Internal I/O Ports	INTERNAL IO 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 5Gbps Type A ports BACK PANEL PORTS DisplayPort HDMI USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button USB 3.2 Gen 1 5Gbps (Type-C) USB 3.2 Gen 1 5Gbps (Type-A) USB 2.0
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Warranty Information
Warranty	3 Years

MSI B650M GAMING WIFI AMD B650 Chipset AM5 mATX Motherboard

The MSI B650M GAMING WIFI is a powerful and compact mATX motherboard designed for modern gamers, creators, and performance-focused PC builders. Built on the advanced AMD B650 chipset, it supports the newest AMD Ryzen 9000, 8000, and 7000 Series desktop processors, giving you access to fast performance, efficient multitasking, and next-generation gaming capabilities. With two DDR5 memory slots supporting speeds up to 7800+ MHz (OC), the board ensures smooth responsiveness in demanding applications, whether you're gaming, editing videos, or streaming. Its PCIe 4.0 x16 slot and dual PCIe 4.0 M.2 slots provide high-speed connectivity for modern graphics cards and NVMe SSDs, reducing load times and improving overall system performance.n Connectivity is one of the motherboard’s strengths. It includes AMD Wi-Fi 6E for high-speed wireless networking across 2.4GHz, 5GHz, and 6GHz bands, along with 2.5Gbps LAN for low-latency, stable wired internet—ideal for competitive gaming. The rear I/O features multiple USB 3.2 Gen 1 and USB 2.0 ports, an HDMI 2.1 and DisplayPort for high-resolution displays, and convenient Flash BIOS Button support for easy updates. For storage, the board offers two PCIe 4.0 M.2 slots and four SATA 6Gb/s ports, along with RAID support for both NVMe and SATA drives. A 7.1-channel Realtek ALC897 audio system enhances your sound experience, while RGB headers let you customize lighting to match your setup. Compact, powerful, and built for the future, the MSI B650M GAMING WIFI is an excellent foundation for a next-generation gaming or productivity PC.

Features of MSI B650M GAMING WIFI AMD B650 Chipset AM5 mATX Motherboard

Advanced Processor Support: Compatible with AMD Ryzen 9000, 8000, and 7000 Series processors for cutting-edge performance.
High-Speed DDR5 Memory: Supports DDR5 up to 7800+ MHz (OC) for exceptional speed and responsiveness.
Dual PCIe 4.0 M.2 Slots: Enjoy ultra-fast NVMe storage with RAID 0/1/10 support.
Next-Gen Wireless: Built-in AMD Wi-Fi 6E ensures smooth, high-bandwidth online gaming and streaming.
2.5Gbps LAN: Provides fast and stable wired networking for competitive play.
PCIe 4.0 Graphics Support: Optimized for modern GPUs with full x16 bandwidth for Ryzen 7000 processors.
Robust Connectivity: Includes HDMI 2.1, DisplayPort 1.4, USB Type-C, and multiple USB 5Gbps ports.
Premium Audio: Realtek ALC897 7.1-channel audio delivers clear and immersive sound.
RGB Lighting Compatibility: Features ARGB and RGB headers for customizable aesthetics.
