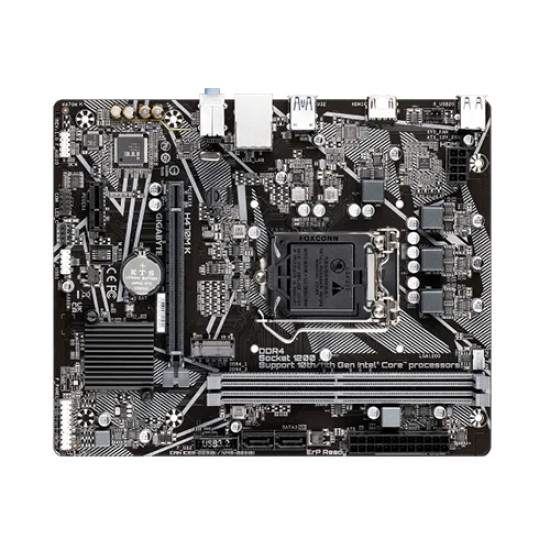

Gigabyte H470M K Intel 10th and 11th Gen Ultra Durable Motherboard

Gigabyte H470M K Intel 10th and 11th Gen Ultra Durable Motherboard

Stock: In Stock
Brand: Gigabyte
Model: H470M K
MPN: star

Based on 0 reviews. - Write a review

9,200৳

Ex Tax: 9,200৳

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supported CPU 11th 10th Gen Intel Core Processors LGA1200
- Supported RAM 2 x DIMM Max 64GB DDR4
- Graphics Output 1 x HDMI port resolution of 4096x216030 Hz
- Features GbE LAN with Bandwidth Management

View more details

Key Features
Form Factor	Micro ATX Form Factor; 22.6cm x 18.5cm
Basic Information
Supported CPU	LGA1200 package: 11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors L3 cache varies with CPU
Expansion Slots
PCI	1 x PCI Express x16 slot: Supporting PCIe 3.0 and running at x16 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
M.2 Socket	1 x M.2 connector: Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD
Memory Specifications
Type	DDR4
Slots	2 x DIMM
Supported Memory	11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Max. Memory	64GB (32 GB single DIMM capacity)
Chipset
Chipset	Intel H470 Express Chipset
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Max Shared Memory	512MB
Motherboard
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
USB (s)	6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage	1 x M.2 connector: Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD 2 x SATA 6Gb/s connectors Intel Optane Memory Ready RAID : Support for RAID 0, RAID 1, and RAID 5
Audio	Realtek Audio CODEC High Definition Audio 2/ 4/ 5.1/ 7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 2 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x Clear CMOS jumper
Others Information
Special Features	Support for APP Center @BIOS Ambient LED EasyTune ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	03 Years

Gigabyte H470M K Intel 10th and 11th Gen Ultra Durable Motherboard

Gigabyte H470M K Motherboard, Intel Socket 1200, 10th Gen, Micro ATX, Intel Ultra Durable with GIGABYTE Gaming GbE LAN, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 5 - Supports 10th Gen Intel Core Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs, Anti-Sulfur Resistors Design.

Gigabyte H470M K Intel 10th and 11th Motherboard Features:

8-Channel HD Audio with High Quality Audio Capacitors
NVMe PCIe Gen3 x4 2280 M.2 Connector
GIGABYTE Gaming GbE LAN with Bandwidth Management
HDMI /DVI-D/D-Sub Ports for Multiple Display
Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
GIGABYTE APP Center, Simple and Easy Use
Anti-Sulfur Resistors Design

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

Program On Top Gets Highest Priority

NVMe PCIe Gen3 x4 2280 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
