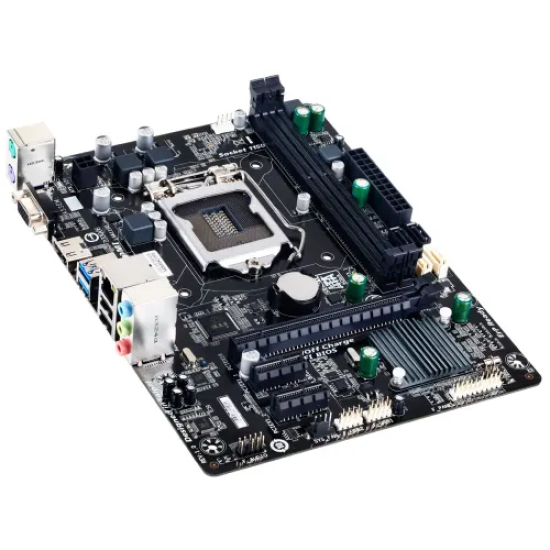

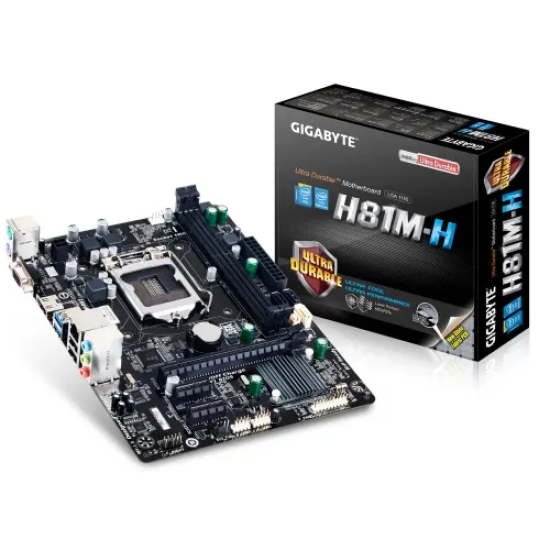

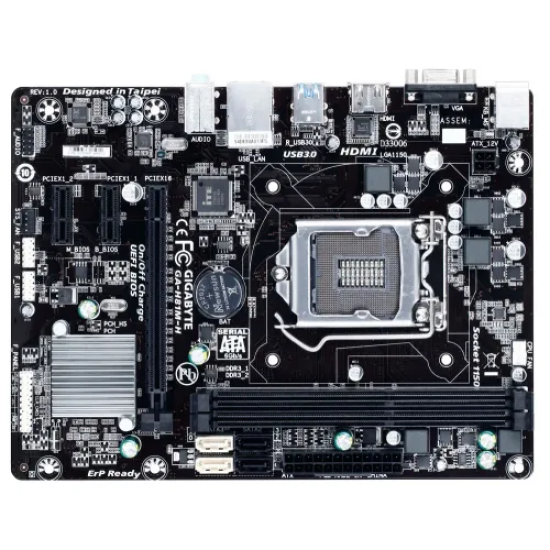

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard

Stock: In Stock
Brand: Gigabyte
Model: GA-H81M-H

Based on 0 reviews. - Write a review

9,600৳

Ex Tax: 9,600৳

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

* অনলাইনে প্রোডাক্ট অর্ডারের পূর্বে হেল্পলাইন থেকে স্টক এবং ডেলিভারী সর্ম্পকে সঠিকভাবে জেনে অর্ডার করার জন্য বিশেষভাবে অনুরোধ করা যাচ্ছে *

Key Features

- Supported CPU: 4th Generation Intel Core processors (LGA1150)
- Supported RAM: 2 x 1.5V DDR3 DIMM up to 16 GB 1600MHz
- Graphics Output: 1 x D-Sub, 1 x HDMI
- Features: LAN with high ESD Protection

View more details

Description
Review

↵

Basic Information
Supported CPU	Support for Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors in the LGA1150 package L3 cache varies with CPU
Chipset	Intel H81 Express Chipset
BIOS	1 x 32 Mbit flash Use of licensed AMI EFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 22.6cm x 17cm
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots
Memory
Type	DDR3
Slots	2 x 1.5V DIMM sockets
Supported Memory	Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	16 GB
Graphics
Graphics	Integrated Graphics Processor - Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz * Support for HDMI 1.4a version.
Max Shared Memory	1 GB

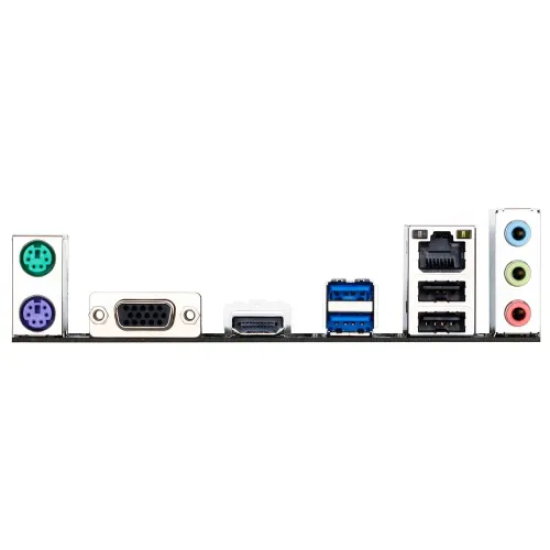

Connector & Ports
HDMI	1 x HDMI
D-Sub (s)	1 x D-Sub
USB (s)	Chipset: 2 x USB 3.0/2.0 ports on the back panel 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (10/100/1000 Mbit)
Supported Storage	Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) 2 x SATA 3Gb/s connectors (SATA2 2/3)
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
Others
Special Features	Support for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Smart TimeLock Smart Recovery 2 Support for ON/OFF Charge
Warranty Information
Manufacturing Warranty	3 Years

Description

GIGABYTE GA-H81M-H 4th Gen Micro ATX Motherboard

The GIGABYTE GA-H81M-H Motherboard is a powerful and feature-rich platform designed to support 4th Generation Intel Core processors. It incorporates GIGABYTE's Ultra Durable Technology, ensuring efficient performance and extended motherboard lifespan. The GIGABYTE GA-H81M-H Motherboard boasts a GIGABYTE UEFI BIOS for streamlined configuration, USB 3.0 ports with GIGABYTE 3x USB power for faster charging and data transfer, and GIGABYTE On/Off Charge for convenient USB device charging even when the PC is off. High ESD Protection safeguards both USB and LAN ports, while the inclusion of HDMI and D-SUB ports on the rear panel offers versatile display connectivity options. The use of solid capacitors for CPU VRM design ensures stability and durability. The GIGABYTE GA-H81M-H Motherboard present a unique blend of cutting-edge features, including support for the latest Intel 8 Series platform, offering enhanced performance and power efficiency. With features like Humidity Protection, Power Failure Protection, and Electrostatic Protection, this motherboard is designed to withstand various challenges. The integration of GIGABYTE's LAN Optimizer and EasyTune technologies, along with Smart Fan 2 for optimal cooling, provides efficient management and customization options. The GIGABYTE App Center offers easy access to a range of GIGABYTE apps for seamless user experience, and the BIOS app allows BIOS updates from within Windows.
